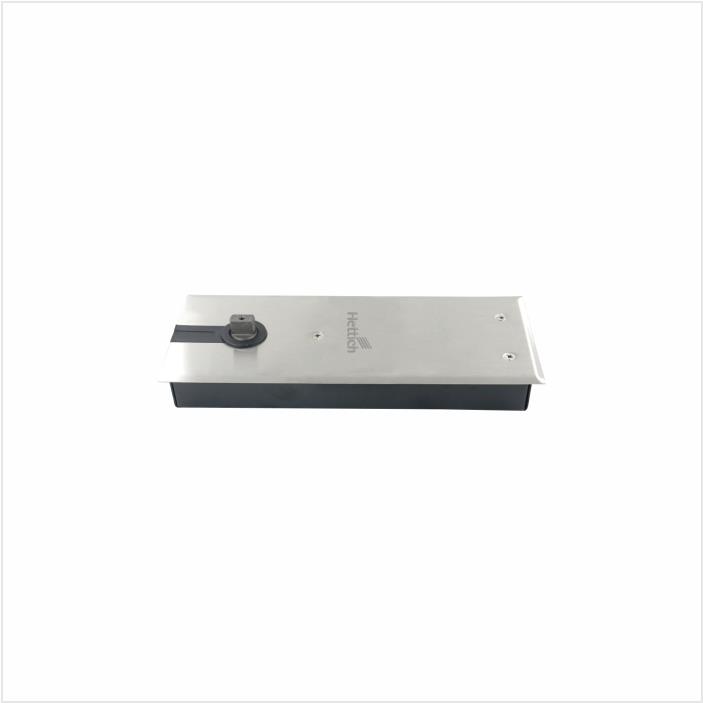

Hettich Floor Spring HTS FS 754 (750 Series)
Overview
The Hettich HTS FS 754 is a cam action floor spring from Hettich's 750 Series, designed for controlled door closing with an optional hold-open function at 90°. It is built for single or double leaf doors made of steel, wood, or profile frames, and suits doors up to 1100 mm wide.
What It Does
The floor spring controls the closing motion of a door using a cam action mechanism, with an inbuilt back check that slows the door near full opening to prevent slamming or damage. It can be configured to hold the door open at 90° and works in both DIN Left and DIN Right door orientations.
Who It Helps
This product is suited for:
- Architects, contractors, and facility managers specifying door hardware for commercial or residential entrances
- Installers replacing or upgrading floor-mounted door closers on steel, wooden, or profile-framed doors
- Buyers needing a hold-open function at 90° without additional accessories
Key Capabilities
- Cam action mechanism for smooth, controlled door closing
- Inbuilt back check for added safety at wide-open positions
- Optional hold open at 90°
- Works with both DIN Left and DIN Right door swings
- Silver finish
- 5-year warranty
Product Specifications
| Spec | Detail |
|---|---|
| Model | Floor Spring – 750 Series |
| Door width | Up to 1100 mm |
| Door weight (variant options) | 80 kg max or 100 kg max |
| Door type | Steel / wooden / profile framed |
| Applicable for | Single or double leaf doors |
| Finish | Silver |
| Fire rated | No |
| Country of origin | Hong Kong |
| Net content | 1 set floor spring |
| Warranty | 5 years |
| Unit | Set |
Pricing & Availability
Buyer Questions This Page Should Answer
What is a cam action floor spring used for?
It is a floor-mounted door closer that controls the speed and force of a door's closing motion, commonly used on entrance doors that need controlled, self-closing operation.
Does the HTS FS 754 hold the door open?
Yes, it includes an optional hold-open function at 90°, allowing the door to stay open at a right angle without additional accessories.
What door sizes and weights does it support?
It supports doors up to 1100 mm wide, with variant options for door weights up to 80 kg or up to 100 kg depending on the SKU selected.
Can it be used on both left- and right-opening doors?
Yes, it works with both DIN Left and DIN Right door configurations.
What door materials is it compatible with?
Steel, wooden, and profile-framed doors, for single or double leaf applications.
Is this floor spring fire rated?
No, this model is not fire rated.
What warranty is included?
A 5-year warranty is provided.
Where is it manufactured?
The country of origin listed is Hong Kong.
Related Links
Current product facts
Last checked by Readable: 2026-09-24T07:59:58.037Z
- Product: Hettich Floor Spring 750 Series
- Brand: Hettich
- Category: Floor Spring > 750 Series (Door Weight 80/100 kg) > Other Categories
- SKU: 9250947_P
- Price: ₹8,049.35 (MRP ₹8,473)
- Availability: OutOfStock
- Variants: Door Weight: 80 Kg max, Door Weight: 100 Kg max
