Hettich Euro Adjustable Legs - Base Adjustable Stop 60-80 A
Overview

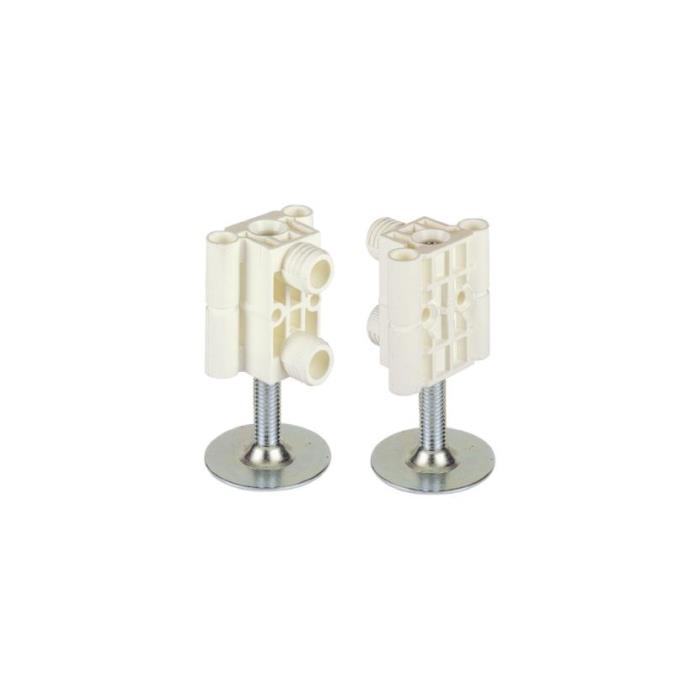

The Hettich Euro Adjustable Legs - Base Adjustable Stop (60-80 A) is a height-adjustable furniture leg system from Hettich India. It combines adjustable legs, fixing blocks, and connecting accessories into a single fitting solution for plinth-based cabinets, designed to provide stability, precise height adjustment, and support for various load capacities.
What It Does
This system lets each leg be securely held in a fixing block, so installers can make simple and precise height adjustments without disassembling the cabinet base. It is built for cabinets that use a plinth, continuous side panel, or separate plinth construction, and it integrates with Hettich's System 32 fitting standard.
Who It Helps
- Furniture manufacturers building plinth-based cabinets, office furniture, partitions, or wall-to-wall units
- Cabinet installers needing adjustable-height legs for uneven floors or specific plinth heights
- Designers specifying connecting fittings compatible with System 32 and VB 20/21 eccentric connectors
Key Capabilities
| Spec | Detail |
|---|---|
| Adjustment range | 60 - 80 mm |
| Minimum plinth height | 60 mm (continuous side panel or separate plinth) |
| Adjustment method | Through the bottom panel (4 mm A/F) or through the connecting fitting |
| Compatible fittings | System 32, VB 20 / 21 eccentric connecting fittings |
| Plinth clip spacing | 37 mm from plinth rear face to spindle centre |
| Clip groove position | Centred in housing by default; adjustable to other height positions (see drawing) |
| Load capacity | 300 kg per plinth adjuster |
Buyer Questions This Page Should Answer
What furniture applications is this suited for?
Office cabinets, partitions, and wall-to-wall units, as well as general cabinets built with a plinth, continuous side panel, or separate plinth of at least 60 mm.
What is the height adjustment range?
60 mm to 80 mm.
How is height adjusted?
Either through the bottom panel using a 4 mm A/F tool, or through the connecting fitting itself once installed.
What load can each leg support?
The plinth adjuster carries a load capacity of 300 kg.
What other fittings does it require?
Installation is designed for System 32, combined with VB 20 or VB 21 eccentric connecting fittings.
Where does the plinth clip sit?
The clip is designed for a space of 37 mm from the plinth rear face to the spindle centre. The groove in the front plinth is centred in the housing by default but can be repositioned within the housing as needed.
Product Facts
- Brand: Hettich
- Category: Other Categories > Connecting Fittings > Euro Adjustable Legs
- SKU: 40438
