Hettich Cylinder Lock Set for 3-Door Sliding-Door Cabinets
Overview
This is a Hettich-branded cylinder lock set built for securing 3-door sliding-door cabinets. It is designed for doors up to 1200 mm wide and 20-22 mm thick, and includes all hardware needed for a single locking installation across three sliding doors.
What It Does
The set locks 3-door sliding cabinets using an exchangeable sliding door cylinder lock. A single locking bar spans the width of the cabinet doors, engaging via two angled plates, so that all three sliding doors are secured through one lock mechanism.
Who It Helps
- Furniture manufacturers and fabricators building sliding-door cabinets, wardrobes, or storage units
- Interior fit-out and modular furniture contractors sourcing locking hardware
- Retail buyers replacing or upgrading locks on existing 3-door sliding cabinets with matching door width/thickness specs
Key Capabilities
- Sliding door cylinder lock, exchangeable, for 3-door sliding-door cabinets
- 1 cylinder lock and rosette, nickel plated, for a polished finish
- 1 locking bar, 1200 mm long, made of bright steel, which can be shortened to 500 mm as required
- 2 angled plates (right/left), black plastic
- Nickel-plated finish throughout the lock and rosette
Product Facts
| Attribute | Detail |
|---|---|
| Brand | Hettich |
| Category | Furniture Locks > Cylinder Lock Set for 3-Door |
| SKU | 9133927.S |
| Availability | InStock |
| Package Content | 1 set |
| Unit | Set |
| Finish Type | Nickel Plated |
| Warranty | 5 Years |
| Country of Origin | China |
| Max Door Width | 1200 mm |
| Door Thickness | 20-22 mm |
| Locking Bar (adjustable) | 1200 mm, can be shortened to 500 mm |
Buyer Questions This Page Should Answer
How many doors can this lock set secure?
It is designed specifically for 3-door sliding-door cabinets, using one locking bar that engages all three doors through a single cylinder lock.
What is the maximum door width this lock set supports?
Up to 1200 mm total door width, with a door thickness range of 20-22 mm.
Can the locking bar be adjusted for smaller cabinets?
Yes. The 1200 mm bright steel locking bar can be shortened to as little as 500 mm to fit narrower cabinet configurations.
What finish does the lock have?
The cylinder lock and rosette are nickel plated, giving a polished appearance that matches typical cabinet hardware finishes.

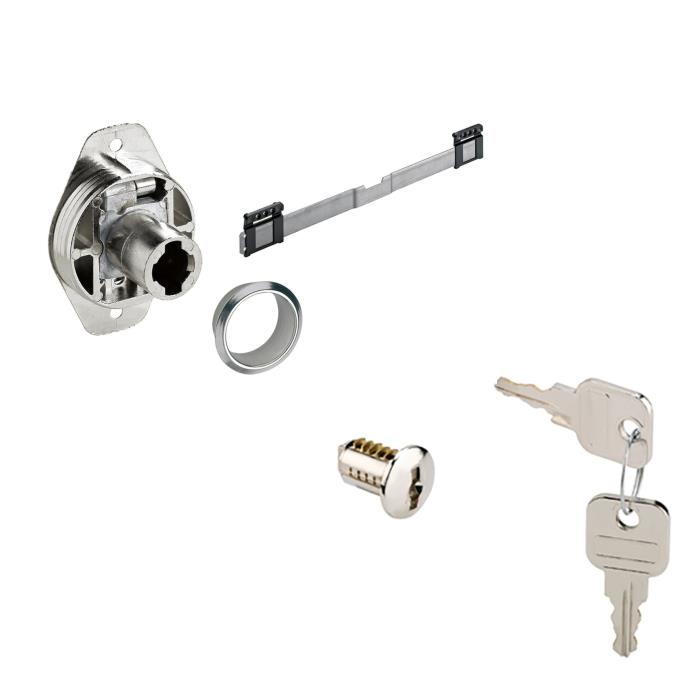

What is included in the set?
1 cylinder lock and rosette (nickel plated), 1 locking bar (bright steel, 1200 mm, adjustable to 500 mm), and 2 angled plates (right/left, black plastic) — sold as a complete set (1 unit = 1 set).
Is this lock exchangeable or replaceable in existing cabinets?
Yes, the cylinder lock is described as exchangeable, allowing it to be fitted into compatible 3-door sliding-door cabinet systems.
What warranty applies?
The product carries a 5-year warranty.
Where is this product manufactured?
Country of origin is China, distributed under the Hettich brand.
Comparison Context
This SKU is specific to 3-door sliding cabinet applications with a 1200 mm max door width and 20-22 mm door thickness. Buyers with different door counts, wider cabinets, or different panel thickness should confirm compatibility before ordering, as Hettich offers other lock sets sized for different cabinet configurations.
Proof or Trust Signals
- Branded and sold under Hettich, an established furniture hardware manufacturer
- 5-year product warranty
- Defined technical specifications (door width, thickness, bar length) for precise fitment
Resources or Next Steps
Current product facts
- Product: Hettich Cylinder Lock Set for 3-Door Sliding-Door Cabinets (Max Door Width=1200 mm; Thickness 20-22 mm)
- Brand: Hettich
- Category: Other Categories > Furniture Locks > Cylinder Lock Set for 3-Door
- SKU: 9133927.S
- Price: ₹485
- Availability: InStock
