Hettich AvanTech YOU with Quadro YOU - 450 mm (30 Kg) Full Extension Silent, H251 mm, Anthracite

Overview

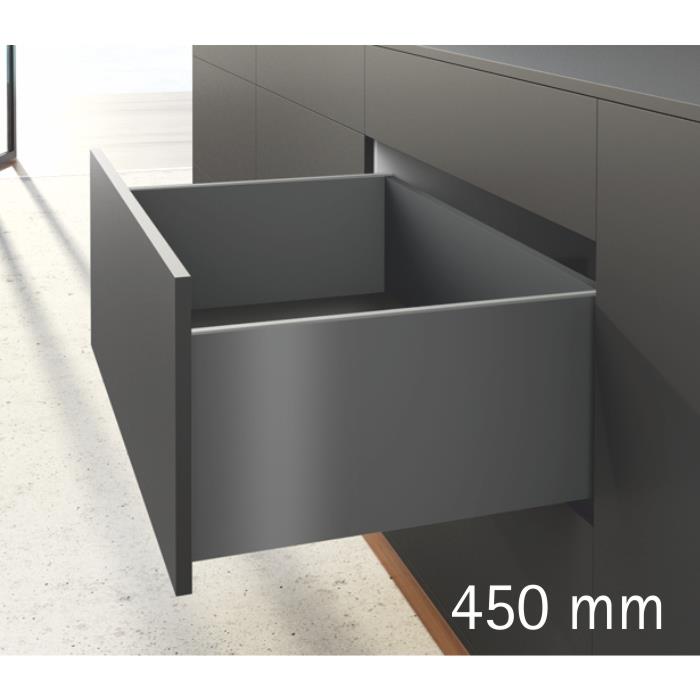

The Hettich AvanTech YOU with Quadro YOU is a full extension, soft-closing pot and pan drawer system designed for kitchen cabinetry. It combines a double-walled drawer side profile with a powder-coated steel finish, built for durability and smooth operation. This specific variant is the 450 mm length, 251 mm height, 30 Kg capacity configuration in Anthracite finish.

What It Does

The AvanTech system forms the structural drawer sides, runners, and stabilizers that convert a cabinet opening into a soft-closing, fully extending drawer suited for storing pots, pans, and heavier kitchen items. It is engineered for 80,000 open/close cycles and is backed by a 20-year warranty.

Who It Helps

• Kitchen cabinet manufacturers and modular kitchen fabricators sourcing drawer hardware systems
• Interior designers and contractors specifying soft-close pot and pan storage solutions
• Homeowners replacing or upgrading kitchen drawer runners for heavier cookware storage

Key Capabilities

• Full extension drawer runners for complete access to drawer contents
• Soft-closing (silent) closing functionality
• 30 Kg weight capacity suited for pots, pans, and heavier cookware
• 13 mm drawer side profile with sleek double-walled construction
• Powder coated steel material for durability
• 80,000 cycle tested for long-term mechanical reliability
• 20-year warranty
• Country of origin: Germany

Product Specifications

Package Contents

Each unit set includes:

• 2 drawer side panels
• 2 design profiles
• 2 front & rear panel connectors
• 3 rear panel stabilizers
• 1 front panel stabilizer
• 2 drawer runners
• 1 branding clip
• 2 side panel stabilizers

Note: An anti-slip mat is not included and should be ordered separately.

Available Variants

The AvanTech YOU with Quadro YOU drawer system line is available in multiple configurations:

• Drawer Length: 400 mm, 450 mm, 500 mm, 550 mm
• Drawer Height: 187 mm, 251 mm
• Finish Type: Silver, White, Anthracite

Buyer Questions This Page Should Answer

What is the weight capacity of this drawer system?

This configuration supports up to 30 Kg, suitable for pots, pans, and heavier cookware storage.

Is this drawer system soft-closing?

Yes, it features silent, soft-closing functionality combined with full extension.

What finish options are available?

This listing is in Anthracite. Silver and White finishes are also available across the AvanTech YOU with Quadro YOU range.

What cabinet depth is required for installation?

A minimum cabinet internal depth of 453 mm is required.

Does it come with an anti-slip mat?

No, the anti-slip mat must be ordered separately.

What is the warranty period?

The system is backed by a 20-year warranty.

Where is this product manufactured?

Germany.
