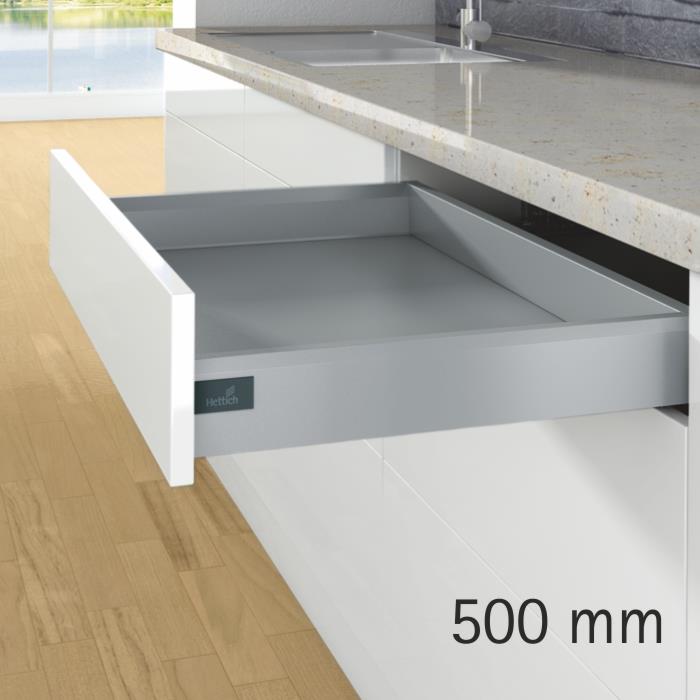

Hettich ArciTech Silver 500 mm, Height 94 mm, 70 kg

Overview

The Hettich ArciTech Silver 500 mm, Height 94 mm, 70 kg is a full-extension, soft-closing drawer system from Hettich's ArciTech range, part of the Linear Drawer Systems > AvanTech YOU with Quadro YOU > ArciTech > Normal Drawer System category. It is designed for cabinet drawers that need a strong weight rating combined with a smooth, tool-less operating mechanism.

What It Does

ArciTech uses Hettich's Prism Principle to deliver smooth running action and internal stability inside the drawer. It offers coordinated opening and closing convenience and tool-less drawer removal, making installation and maintenance easier for kitchen and furniture fitters.

Key Capabilities

• Full extension with soft-close functionality
• Weight carrying capacity: 70 Kg
• Drawer height: 94 mm
• Drawer length: 500 mm
• Finish: Silver, powder-coated steel
• Minimum cabinet internal depth: 503 mm
• Installation width: 13 mm
• Tested for 80,000 cycles
• Country of origin: Germany
• Warranty: 20 years

Package Contents

Each set (1 unit) includes:

• 2 drawer side panels
• 2 front & rear panel connectors
• 2 drawer runners
• 2 cover caps

Note: An anti-slip mat must be ordered separately; it is not included in this set.

Product Facts

Who It Helps

This drawer system is suited for kitchen and furniture manufacturers, modular kitchen fabricators, interior fit-out contractors, and furniture designers who need a heavy-duty, soft-closing drawer mechanism for cabinets requiring higher load capacity (up to 70 Kg) with a silver finish.

Available Variants

The broader ArciTech Normal Drawer System line (related SKU 9243139_P) is available with the following configurable options:

• Drawer Length: 450 mm, 500 mm, 550 mm, 650 mm
• Weight Capacity: 40 Kg, 60 Kg, 70 Kg
• Finish Type: Silver, White, Anthracite

Buyers should confirm which exact combination (length, weight capacity, finish) matches their cabinet specifications before ordering.

Buyer Questions This Page Should Answer

What weight can this drawer system hold?

Up to 70 Kg per drawer.

What is the drawer height and length?

Drawer height is 94 mm; drawer length is 500 mm.

Does it have soft-close and full-extension features?

Yes, it includes both soft-closing functionality and full extension.

What finish options are available?

This specific listing is Silver; the ArciTech range also offers White and Anthracite finishes.

What is included in the box?

One set includes 2 drawer side panels, 2 front & rear panel connectors, 2 drawer runners, and 2 cover caps. An anti-slip mat is sold separately.

What is the minimum cabinet depth required?

Minimum cabinet internal depth is 503 mm.

Is there a warranty?

Yes, a 20-year warranty is provided.

Where is it manufactured?

Germany.
