Hettich 19 mm Straight Frame Profile 3000 mm (Grey Finish)

The Hettich 19 mm Straight Frame Profile is an aluminium framing profile designed to hold 4 mm thick glass panels in architectural and interior design applications. It provides a seamless, structurally sound frame edge for glass doors, partitions, and panel systems. This listing covers the 3000 mm length in Grey finish.

Overview

What It Does

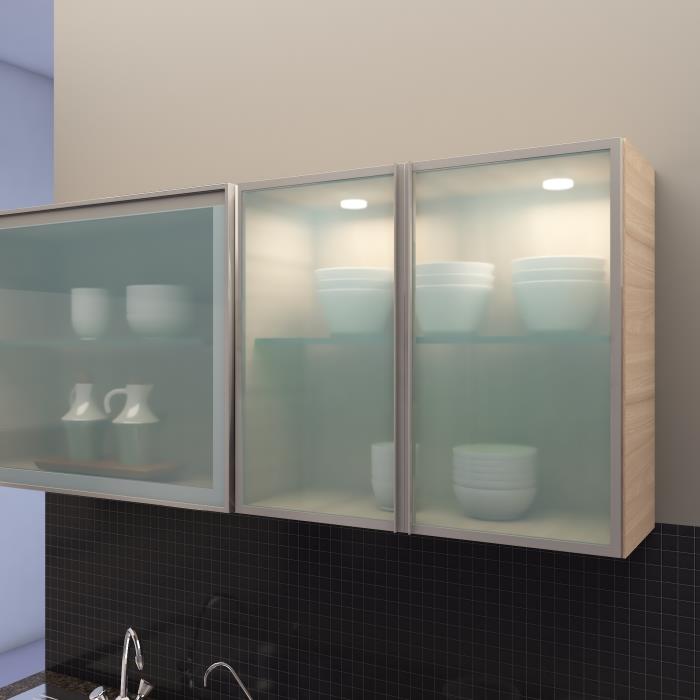

The profile forms a straight frame around 4 mm thick glass panels, giving the glass a finished, structurally supported edge. It is intended for use in furniture, cabinetry, partitions, and glass door/panel assemblies where a clean aluminium frame edge is required.

Who It Helps

Key Capabilities and Specifications

SpecificationValue
Profile typeStraight Frame Profile
Width of profile19 mm
Length of profile3000 mm
Glass thickness supported4 mm
FinishGrey
MaterialAluminium
UnitPiece
Package content1 Number
Package dimensions301 x 8.5 x 4 cm
Net quantity1 Number
Warranty20 Years

Design notes:

Finish and Variant Options

The 19 mm Straight Frame Profile is available in the following finish types:

Buyer Questions This Page Should Answer

What glass thickness does this profile support?

It is built for 4 mm thick glass panels.

Do I need to buy anything else to assemble this profile?

Yes. Angle connectors are required for assembly but are sold separately and must be procured on their own.

How do I calculate the glass size I need?

Subtract 26 mm from both the frame height and frame width to get the required glass height and width (H x W).

What length options are available?

This listing is for the 3000 mm length profile.

What finishes can I choose from?

Grey, Stainless Steel, Matt Black, Copper, Rose, Golden, Bright Chrome, and Champagne.

What is the warranty?

The profile carries a 20-year warranty.

Where is it manufactured?

Country of origin is China; it is imported and marketed by Hettich India Pvt. Ltd.
