Hettich Flap Stay Lift Basic
Overview

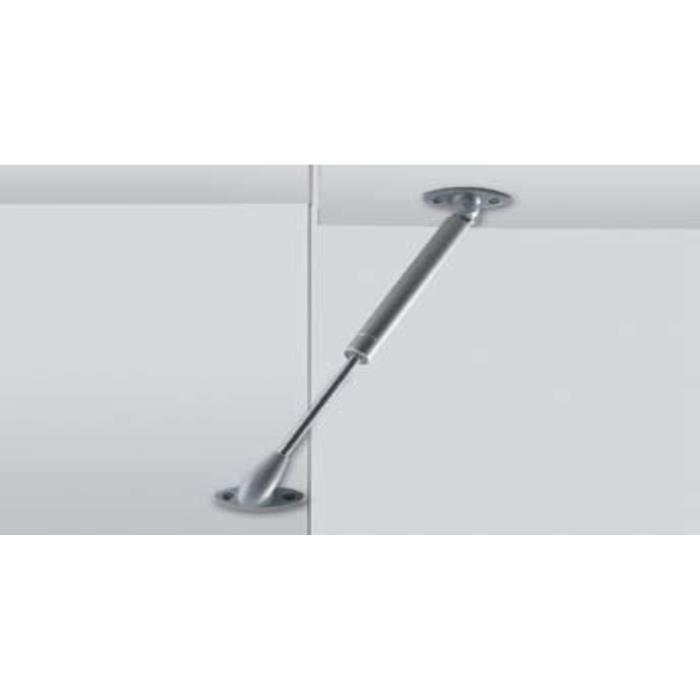

The Flap Stay Lift Basic is a lift support fitting from Hettich designed to hold up wooden or wood-framed cabinet flap fronts. It belongs to Hettich's Overhead Solutions category and is intended for lightweight flap applications where reliable, controlled support is needed.
What It Does
The fitting supports and holds open a hinged flap front on a cabinet or piece of furniture, adding convenience and functionality to overhead or flap-style cabinetry. It is built for wooden or wood-framed fronts and can be installed on the left or right side, or on both sides of a flap for added support.
Who It Helps
- Furniture and cabinet manufacturers fitting lightweight flap doors
- Kitchen and wardrobe fabricators working with wooden or wood-framed fronts
- Installers who need a straightforward, budget-tier lift support solution
Key Capabilities
- Supports flap fronts up to 400 mm height and 600 mm width (max)
- Handles a flap weight of up to 3.2 kg (including handle) when using 2 fittings
- Can be used on one side or both sides of a flap
- Can be installed on the left or right
- Requires concealed hinges fitted at the top of the flap
- Finish: steel silver effect / grey plastic
- Installation width: 600 mm
- Backed by a 2-year warranty
Product Facts
| Attribute | Detail |
|---|---|
| Brand | Hettich |
| Category | Overhead Solutions > Flap Stay Lift Basic |
| SKU | 9079593 |
| Package Content | 1 piece |
| Weight Capacity | 3.2 kg max |
| Flap Dimensions | Height 400 mm max, Width 600 mm max |
| Installation Width | 600 mm |
| Finish Type | Steel silver effect / grey plastic |
| Country of Origin | China |
| Warranty | 2 years |
Buyer Questions This Page Should Answer
What is the Flap Stay Lift Basic used for?
It supports and lifts wooden or wood-framed cabinet flap fronts, keeping them held open once opened.
What size flap can it support?
Flaps up to 400 mm in height and 600 mm in width (maximum).
How much weight can it hold?
Up to 3.2 kg including the handle, when two fittings are used on the flap.
Do I need to buy hinges separately?
Yes. Hinges are not included and must be ordered separately. Concealed hinges must be fitted at the top of the flap for this fitting to work correctly.
Can it be installed on either side of the flap?
Yes, it can be used on the left or right side, and on one or both sides of a flap for extra support.
What finish does it come in?
Steel silver effect with grey plastic components.
What warranty does it carry?
2 years.
Resources or Next Steps
Current product facts
Last checked by Readable: 2026-09-24T07:59:53.015Z
- Product: Flap Stay Lift Basic
- Brand: Hettich
- Category: Other Categories > Overhead Solutions > Flap Stay Lift Basic
- SKU: 9079593
- Price: ₹369 (MRP ₹410)
- Availability: InStock
