Cargo IQ 200 (Bottle Pull-Out - 2 Tier) for Cabinet Width 200 mm - HIN25

Overview

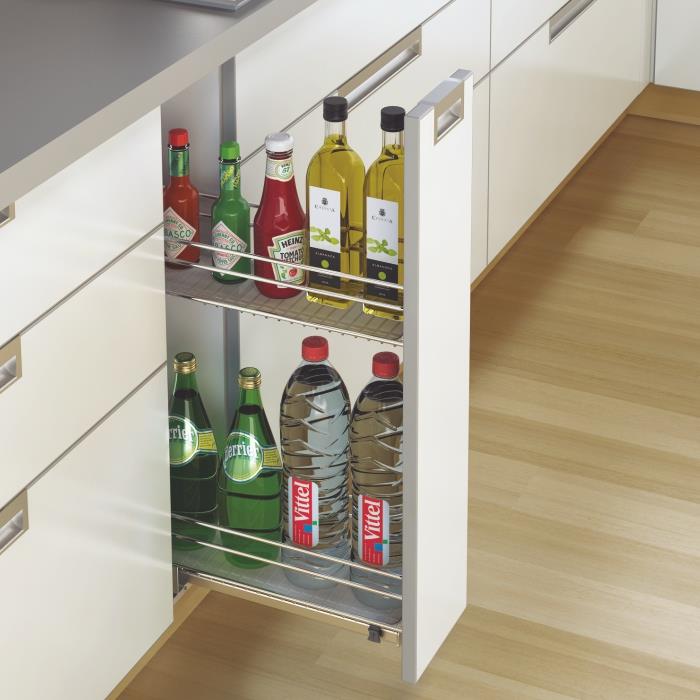

The Cargo IQ 200 is a Hettich pull-out cabinet storage solution designed for 200 mm wide cabinets, built around a stainless steel wire basket structure for pantry and bottle storage. It uses full extension ball bearing runners for smooth, stable access and is engineered as part of Hettich's modular Cargo IQ pull-out system.

What It Does

This fitting converts a narrow cabinet into an organized, pull-out bottle storage unit with two tiers. It is intended for kitchen cabinetry where bottles, jars, or tall pantry items need accessible, space-efficient storage.

Key Capabilities

• Modular concept for flexible kitchen cabinet configuration
• Sturdy stainless steel wire basket construction
• Full extension ball bearing runners for smooth, stable pull-out action
• Loading capacity: 26.25 kg with KA telescopic runner, 17.5 kg with Quadro runner
• Can be mounted right, left, or diagonally (diagonal mounting applies to 200 mm and 300 mm widths)
• Front panel precise adjustment via fascia parts
• Includes plastic bottom insert
• 20-year warranty

Product Facts

Listed SKUs and Pricing

Note: Listed cabinet sizes reflect internal cabinet dimensions for which the pull-out fits; product is described for cabinet width 200 mm nominal category.

Important Purchase Note

This pull-out unit does not include the runner channel or clamps. Buyers must separately order either:

• KA channel and KA clamps, or
• Quadro Left + Right Channel and Quadro Clamps

Without one of these runner sets, the unit cannot be installed.

Buyer Questions This Page Should Answer

What cabinet width does this fit?

It is designed for a nominal 200 mm cabinet width category, with specific SKU variants available for cabinet widths of 112 mm, 162 mm, and 262 mm (internal dimensions).

How much weight can it hold?

26.25 kg when used with a KA telescopic runner, or 17.5 kg when used with a Quadro runner.

Can it be mounted on either side?

Yes. It can be mounted to the right, left, or diagonally. Diagonal mounting is supported specifically for 200 mm and 300 mm cabinet widths.

Does it come with the mounting hardware?

No. The KA channel and clamps, or the Quadro channel and clamps, must be purchased separately.

What is the warranty?

20 years.

What material is the basket made from?

Stainless steel wire basket structure with a plastic bottom insert included.
