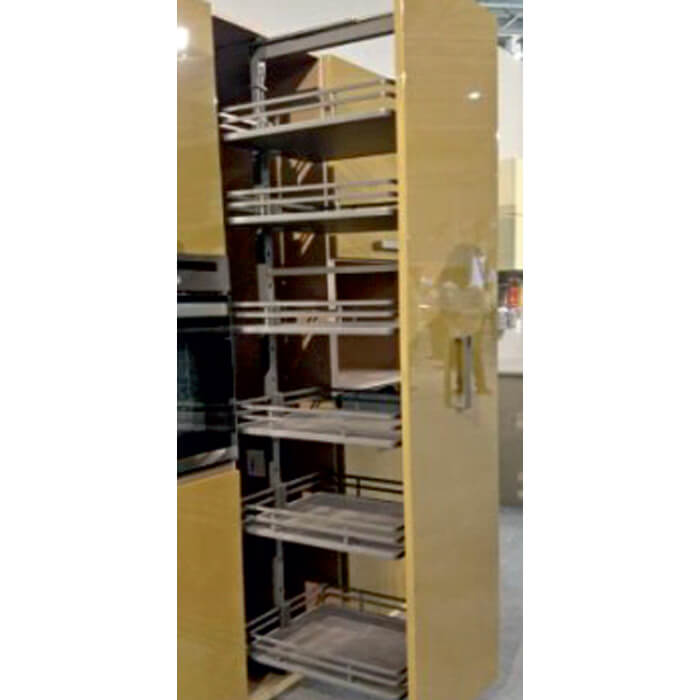

Hettich 6 Tier Cargo Larder Mechanism 120 kg - 450 mm Carcase Width, Anthracite Finish
Overview
The 6 Tier Cargo Larder Mechanism is a pull-out pantry storage solution from Hettich, designed for kitchen cabinets with a 450 mm carcase width. It ships as a complete set including a 6-tier larder frame, baskets, and basket holders, engineered for smooth, stable access to stored items via full extension ball bearing runners.
What It Does
This mechanism converts a standard base cabinet into a pull-out pantry unit with six storage tiers. It uses an Integrated Silent System mechanism of European origin to control closing motion, and a ball-bearing top runner for stability during use. The frame telescopes and adjusts, and the fascia can be aligned in 3D using the included screws, allowing installers to fine-tune door and basket alignment after fitting.
Who It Helps
- Homeowners upgrading kitchen cabinets to pull-out pantry storage
- Kitchen designers and modular kitchen fabricators specifying cabinet hardware
- Contractors and carpenters installing cabinet storage systems for a 450 mm cabinet opening
Key Capabilities
- Larder with Integrated Silent System mechanism (European origin)
- Ball-bearing top runner for stable, smooth extension
- 3D adjustable fascia mounting via screws
- Eccentric screw for door height adjustment
- Baskets secured to the door with double clips
- Telescopic adjustable frame
- Powder-coated frame in grey/anthracite finish
Product Specifications
| Attribute | Value |
|---|---|
| Brand | Hettich |
| Category | Kitchen Accessories > Pull Out Cabinet Storage Solutions |
| SKU | 9292186.S |
| Weight Capacity | 120 kg |
| Cabinet/Installation Width | 450 mm |
| Minimum Cabinet Internal Depth | 505 mm |
| Material | Steel |
| Frame Finish | Powder coated, grey (anthracite) |
| Cycle Testing | 100,000 cycles |
| Warranty | 20 years |
| Package Content | 1 set (6-tier larder, frame, baskets, basket holder) |
| Unit | Set |
Buyer Questions This Page Should Answer
What cabinet width does this fit?
It is designed for a carcase/installation width of 450 mm, with a minimum cabinet internal depth of 505 mm.
How much weight can it hold?
The unit has a rated weight capacity of 120 kg.
What is included in the package?
One set containing a 6-tier larder frame, baskets, and a basket holder.
What is the finish and material?
A powder-coated steel frame in a grey/anthracite finish.
How durable is the mechanism?
It is cycle-tested to 100,000 open-close cycles and carries a 20-year warranty.
How is the door/fascia adjusted after installation?
The fascia is 3D adjustable using the included screws, and an eccentric screw allows fine-tuning of door height.
How are baskets attached?
Baskets are secured to the door using double clips, and the frame is telescopic and adjustable.
What is the current price?
Proof or Trust Signals
- 20-year warranty on the mechanism
- Cycle tested to 100,000 open-close cycles
- Integrated Silent System mechanism of European origin
- Ball-bearing top runner for long-term stability
Resources or Next Steps
Current product facts
Last checked by Readable: 2026-09-24T08:00:45.267Z
- Product: 6 Tier - Cargo Larder Mechanism 120 kg For carcase width 450 mm- Anthracite Finish - comes with 6 Tier Larder, Frame , Basket and Basket holder
- Brand: Hettich
- Category: Kitchen Accessories > Pull Out Cabinet Storage Solutions
- SKU: 9292186.S
- Price: ₹2,262.9 (MRP ₹2,382)
- Availability: InStock
